NetWatch

Tech stack: Rust License: (see repo)

What it does

NetWatch is a network-forensics TUI organized as a nine-tab dashboard — Dashboard, Connections, Interfaces, Packets, Stats, Topology, Timeline, Processes, Insights — addressable by number keys 1–9. It opens with zero configuration and is “useful in five seconds”: even without elevated permissions or pcap support it surfaces something (interface metadata, /proc stats, whatever the OS will give it) and tells you, in-band, which capability tier it’s running at. The forensics internals (TLS decryption, deep packet inspection) are out of scope for KN-86; the UX patterns are not.

Aspirational features for KN-86

• Numbered-tab dashboard. Nine tabs, one digit each. The mental model is “press the number, see the view.” For KN-86, the 16-key phone-layout numpad makes this a natural fit — 1–9 (or */0/# for action keys) could address top-level surfaces inside the Bare Deck Terminal or any module-style cart.
• Zero-config, “useful in 5 seconds” philosophy. No setup, no permission prompts, no empty-state nag. KN-86 already aims at the cold-power-on-to-useful gap — the Bare Deck Terminal is the analogous surface. Borrow NetWatch’s instinct: every surface should show something the second it’s drawn.
• Graceful capability degradation. NetWatch shows the active data source, never crashes, and lets the user know explicitly when a tier is unavailable. KN-86 parallels: no cart inserted, no microSD detected, coprocessor offline, battery low. Surface the state in-band, in the firmware status row, and keep going.
• Wireshark-style display-filter syntax. A small, learnable query DSL (“show only X”) inside the active view. For KN-86, missions-board and event-log surfaces could use a tiny filter grammar (e.g. phase:active, rep:>50) on Row 24.
• Sparklines, heatmaps, Gantt timelines. Tiny inline visualizations as first-class glyphs in the data view, not separate “graph” tools. Box-drawing and braille characters make these cheap on a text grid; CIPHER-LINE would be at home rendering a sparkline above the keyboard.
• 7-theme system with live switching (t) and persistence. The lesson: themes are a user-visible setting you can rotate through with one key, and the choice survives a restart. (KN-86 is amber-on-black; the mechanism applies even though the palette doesn’t.)
• Incident bundle export. “Snapshot the current state into a sharable file.” For KN-86 think: a Universal Deck State bundle the user can hand off (mission-board screencap + cart history + recent CIPHER lines + PSG state) for support, friends, or a planned save-share story.

UX / interaction patterns

• Number keys = top-level navigation. Vim-cursor / arrow keys can stay for in-pane movement, but the digit keys jump.
• State badge in chrome. Active data tier (“real pcap” vs “/proc fallback”) always visible, never a surprise. For KN-86, encode cart state, coprocessor link state, and battery tier into Row 0.
• Live theme cycling. t rotates themes without leaving the current view. Theme persists. Translation for KN-86: a single-key cycle through aesthetic modes (e.g. glyph treatments / CIPHER-LINE animation profiles) persisted in nosh-config.toml.

Visual style

• Tab-strip on top, data view below. Numbered tab labels along the top edge.
• Sparklines / heatmaps / Gantt timelines as inline glyphs. Not separate screens — they belong inside the row they describe.
• Theme-aware chrome. Same widgets, different palette.

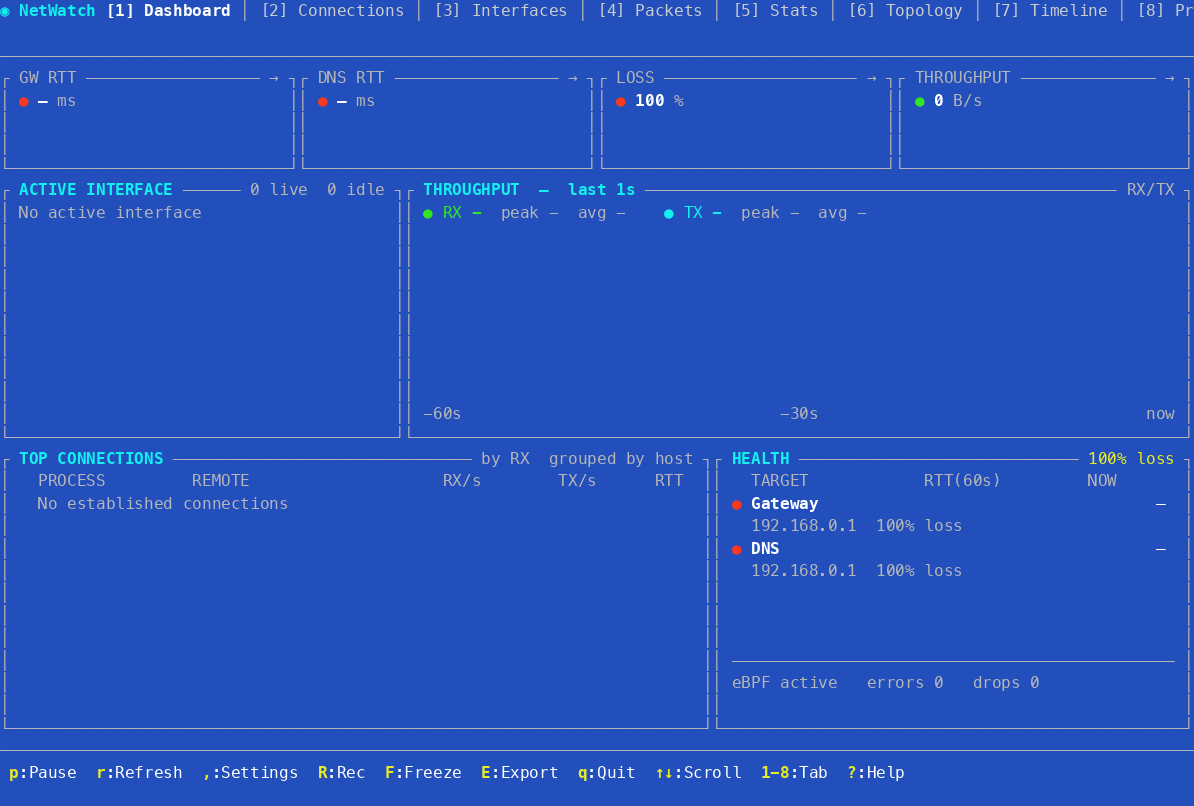

Screenshot

The animated GIF is doing real work here — it shows tab cycling, the live sparkline updates, and the theme switch (t) in motion. Static screenshots don’t carry the same payload.

Notes / open questions for KN-86

• Numbered-tab navigation is a direct fit for the phone-layout numpad. Worth piloting on the Bare Deck Terminal first: 1=STATUS, 2=CIPHER, 3=LAMBDA, 4=LINK, 5=SYS, with extension headroom up to 9. Compare to the existing TERM-key model.
• Graceful degradation as a doctrine. NetWatch’s principle (“show what you have, label the tier”) is exactly the right framing for the cart-absent, coprocessor-absent, and low-battery cases. Worth promoting to a runtime-spec doctrine, not just a per-surface feature.
• The “incident bundle” concept is interesting for KN-86’s social/share story — a single file that captures deck state at a moment. Out of scope for v0.1, but parking it here.
